SH1 CAD image

Signalist SH1 - 3-aspect Westinghouse searchlight head

4mm scale 3-aspect searchlight head fitted with a RGB LED (RGY LED for SH1a) representing the Westinghouse searchlight signals used in the UK. Can be fitted to non-operating Traintech signal mast or be fitted to a gantry.

See the Signal head manual for more information.

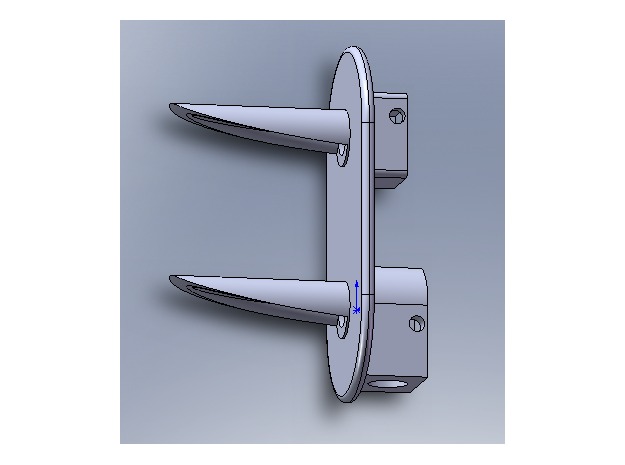

SH2 CAD image

Signalist SH2 - 4-aspect Westinghouse searchlight head

4mm scale 4-aspect searchlight head fitted with a RGB LED in the lower housing and a yellow LED in the upper housing (RGY LED in the lower housing for SH2a) representing the Westinghouse searchlight signals used in the UK. Can be fitted to non-operating Traintech signal mast or be fitted to a gantry.

See the Signal head manual for more information.

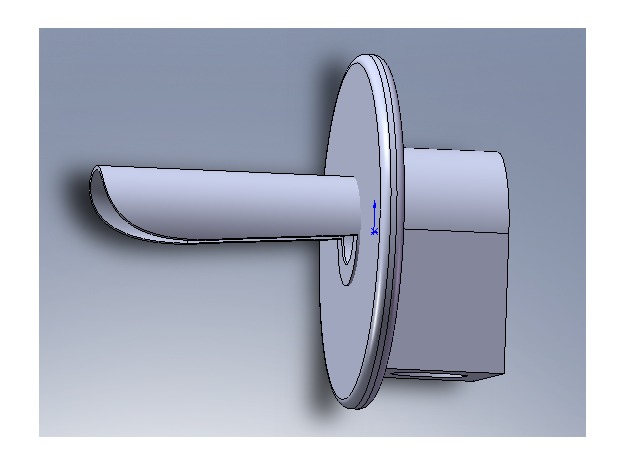

SH3 CAD image

Signalist SH3 - 3-aspect GRS searchlight head

4mm scale (3' target) or 3.5mm scale (3'6" target) 3-aspect searchlight head fitted with a RGB LED (RGY LED for SH3a) representing the GRS searchlight signals used in the UK and North America. Can be fitted to non-operating Traintech signal mast or be fitted to a gantry.

See the Signal head manual for more information.



Signalist SH4 - 2-aspect dwarf head

4mm scale dwarf head which can be fitted with two standard 1.8mm or 2mm LEDs

See the Signal head manual for more information.



Signalist SH5 - 3-aspect dwarf head

4mm scale dwarf head which can be fitted with three standard 1.8mm or 2mm LEDs

See the Signal head manual for more information.



Signalist SB1 - Plug-in signal base

3.5mm scale simulated cast signal mast base on concrete pad with mast finials. Socket has provision for 10-way IDC connector for easy wiring to a Signalist SC1 or Digitrax SE8C with ribbon cable and base has provision for fitting a 5-strip wide piece of stripboard with a 2x5 pin header to terminate wires from the signal heads. Use with metal tube (up to 2.5mm diameter), and etched ladder and SH series signal heads to make a complete signal mast. Mast can be simply unplugged for safe storage.

See the Signal base manual for more information.



Signalist SM1 - Digitrax signal convertor

2mm scale signal mast convertor for converting a Digitrax SMBK signal base kit (triple pack) into 3x double head signal masts. Just add etched ladders to complete the mast.Supplied as two parts on a sprue that just clips on.
