Norfolk and Western

Norfolk and Western position light signals can be connected to the Signalist SC1 as in the below diagram. A second single head can be connected to terminals E,F, G and H when a single head configuration is required instead of A, B, C and D.

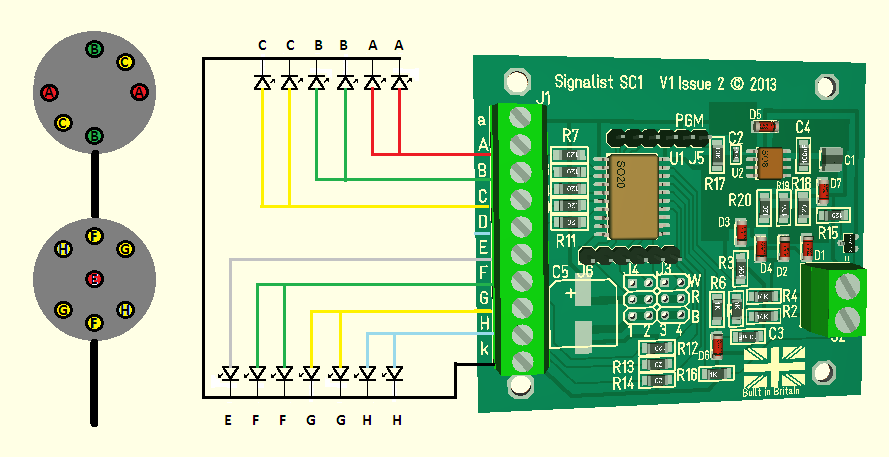

Norfolk and Western twin head position light connected to a SC1


Norfolk and Western position light connection diagram

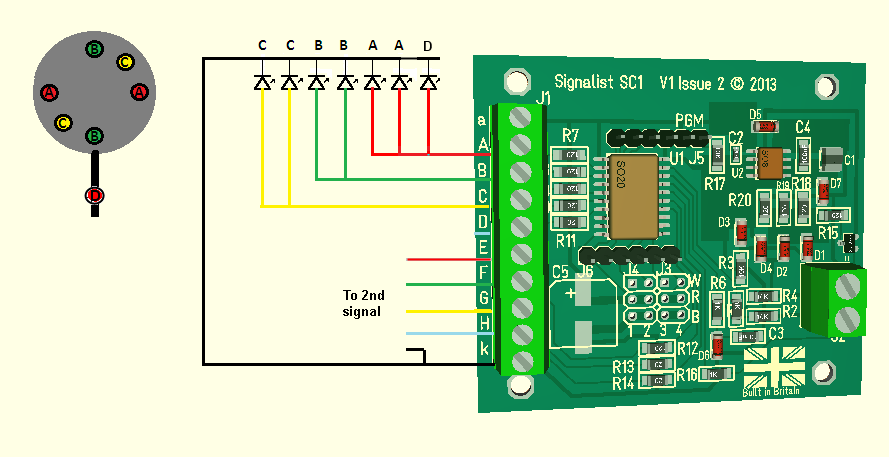

Norfolk and Western single head absolute position light connected to a SC1

Norfolk and Western single head absolute signal wiring diagram


Norfolk and Western single head restricting position light connected to a SC1

Norfolk and Western single head with restricting wiring diagram


Norfolk and Western triple head searchlight connected to a SC1

Norfolk and Western triple head searchlight connection diagram

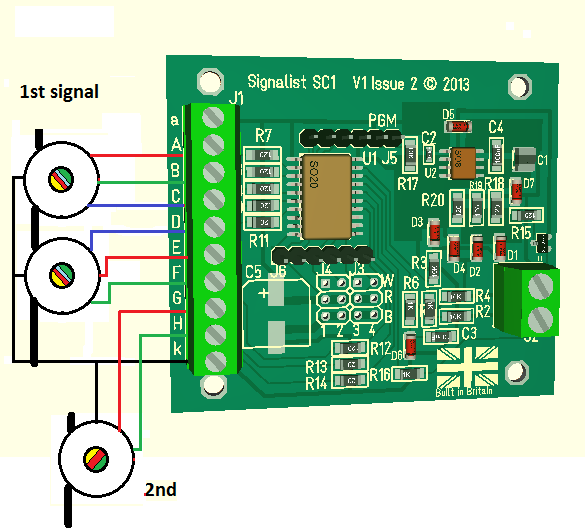

Norfolk and Western twin head searchlight with lunar aspects connected to a SC1

Norfolk and Western twin head searchlight signal with lunar aspects wiring diagram


Norfolk and Western twin head searchlights without lunar aspects connected to a SC1

Norfolk and Western twin head searchlight without lunar aspects connection diagram
Note that when using the CV38=8 configuration flashing aspects can be achived by toggling between the solid aspect and dark. Software such as JMRI will do this automatically.

N&W

Rule

Description

Aspect

multi

Position

CV38=68

Triple (A-F)

CV38=69

Double

CV38=70

Double

CV38=71

Single (G+H)

CV38=69/70

Aspect

single

Single

CV38=129/67

292

Stop

0

R R

R R R

R R

R R

R

0

R

-

Res. For rule 291

1

-

-

-

-

-

8

-

290

Restricting

2

R \

R R Y

R Y

R Y

R

0

R

-

Res. For rule 289

3

-

-

-

-

-

8

-

288

Slow approach

4

-

-

y -

y -

y

5

y

287

Slow to Clear

5

-

R R G

G -

G -

G

2

G

286

Div approach

6

R /

R Y R

L Y

-

-

8

-

285A

Approach distant

7

Y

-

-

-

Y

1

Y

285

Approach

8

Y

Y R R

Y R

Y R

Y

1

Y

-

Res. For rule 284

9

-

-

-

-

-

8

-

283B

Div. Appr. Div.

10

R / <F

R y R

L y

-

-

8

-

283

Diverging Clear

11

R |

R G R

L G

R G

-

8

-

282A

Advance Approach

12

Y /

Y Y R

Y Y

Y Y

-

8

-

282

Approach Div.

13

Y |

Y G R

Y G

Y G

-

8

-

281

Clear

14

G

G R R

G R

G R

G

2

G

-

Dark

15

-

-

-

-

-

8

-


Key R=Red, G =Green, g=Flashing Green, Y=Yellow, y=Flashing Yellow, L=Lunar, W=White.
N=Normal or Closed, R=Reversed or Thrown

In JMRI use DCC Signal Mast Decoder for CV38=67-71 and 129, use Quad Output for each positon light head when CV38=8, Double Output for each red/yellow/green searchlight head when CV38=8 and Triple Output RGB for each red/yellow/green/lunar searchlight head when CV38=8.


Signal reference chart for 1992 can be found at the Signals of the US website:- Norfolk and Western PDF
